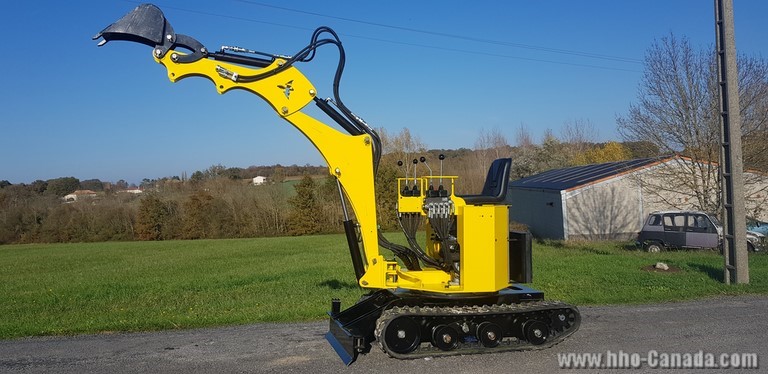

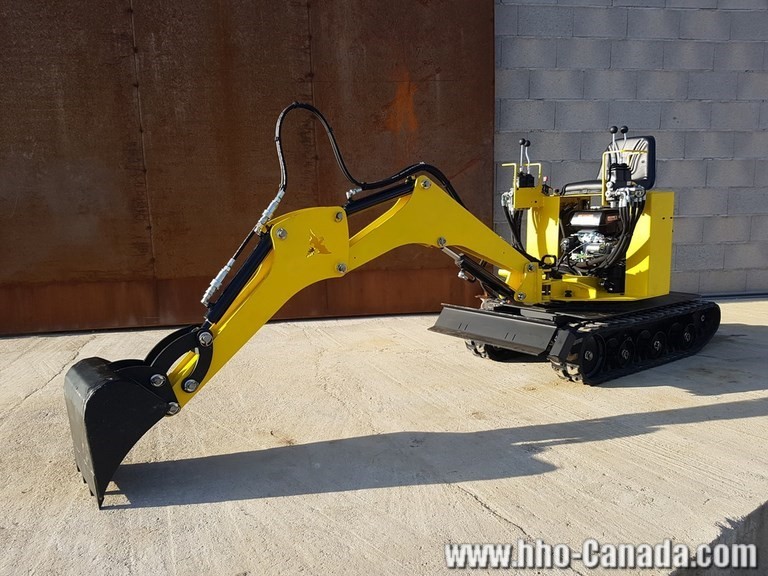

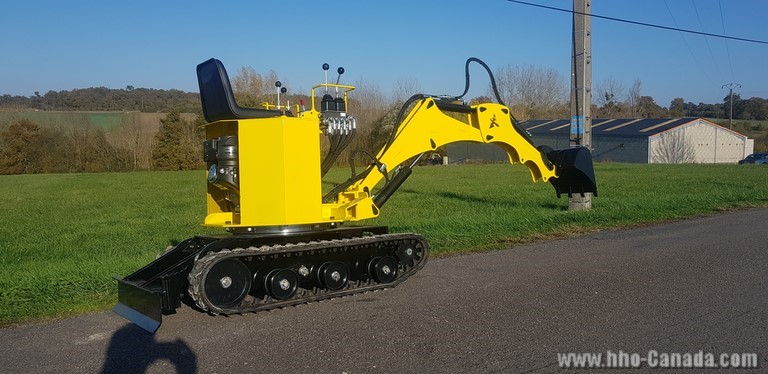

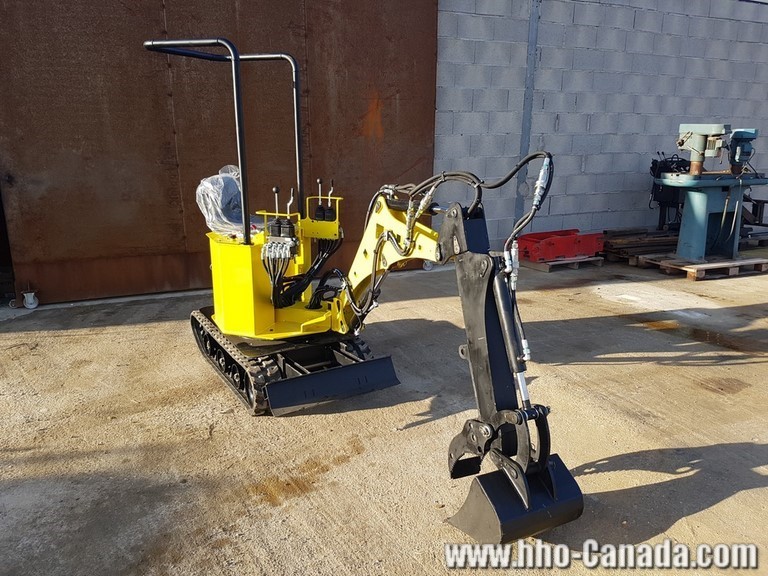

Phoenix 400 - Configuration 9.5

Designed in France and manifactured in Québec

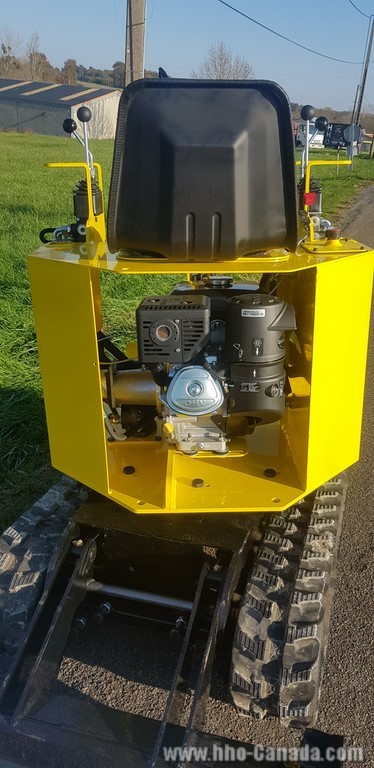

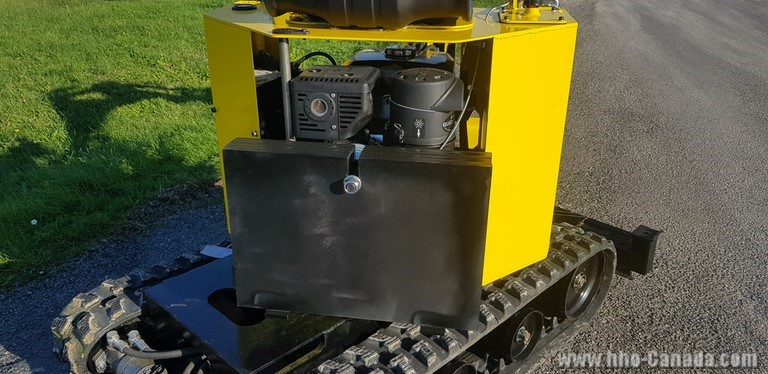

9.5 hp Kohler Pro motor

The PH400 configuration 9.5 is equiped with a 9.5 hp Kohler Pro motor with a 3 years warraty, a double pump 3.2 + 3.2 cc, professional slewing ring and a 16" bucket.

This configuration is design for a private and semi-professional use, for people who wishes to do their excavation works themselves.

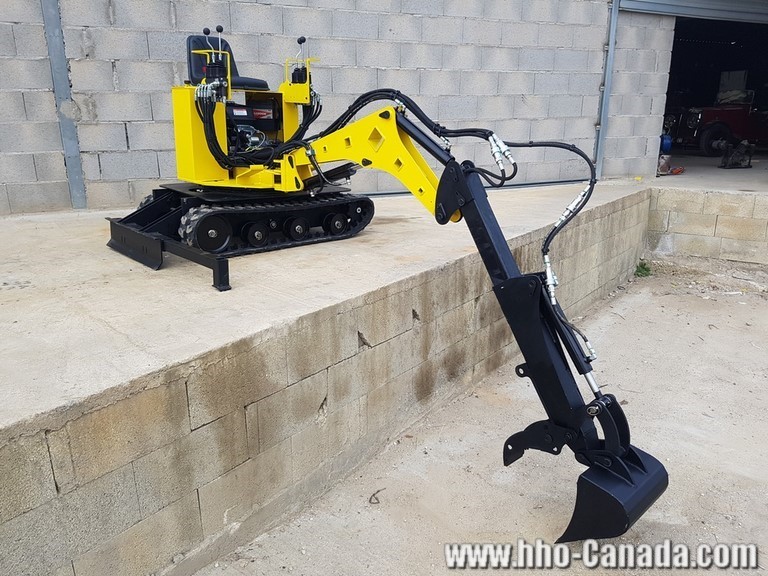

It is possible to adapt a telescopic arm, an auger or a grappling hook to the stick.


Fill the order form and send it to us by mail or email in order to receive a quote.

Product and version
Prices
PH400 - Ready to use Version9750,00 $
PH400 - Welded and painted version7975,00 $
PH400 - Kit version7225,00 $
PH400- Version kit à souder6475,00 $
TPS 5% + TVQ 9,975% - Deposit of 750 $ requested for an order

Technical description

Empty weight: 1600lbs (750 kg)
Total height: 5'7" (1,6m)
Overall width: 32" (0,83m)

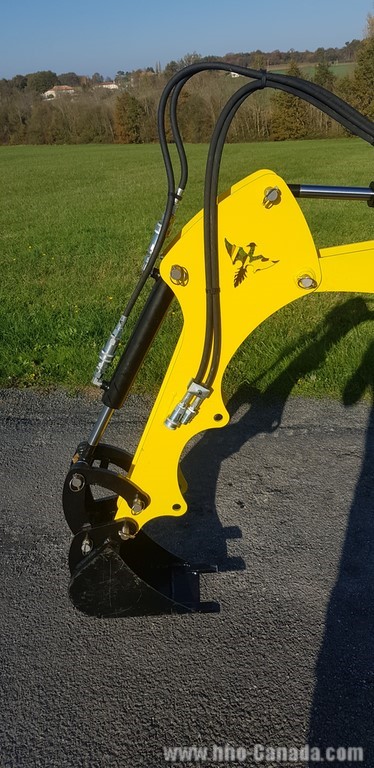

Arm

Turret rotation angle: 210°/150° (right or Left)
Detachable arm on the walnut to allow digging along a wall
Maximum height (from the ground): 8'3" (2,5m) (bucket open)

Maximum depth (from the groung): 5'3" (1,6m)
Breaking force: 1,6 t

Kohler pro Engine

Air cooled engine
Fuel: Gasoline
Type: Single cylinder, 4 stroke - 9,5 hp
Power: 7,1 kW
Cylinder capacity: 277 cc
Consumption: (100% charge): 3 L/h
Fuel tank capacity: 7 L

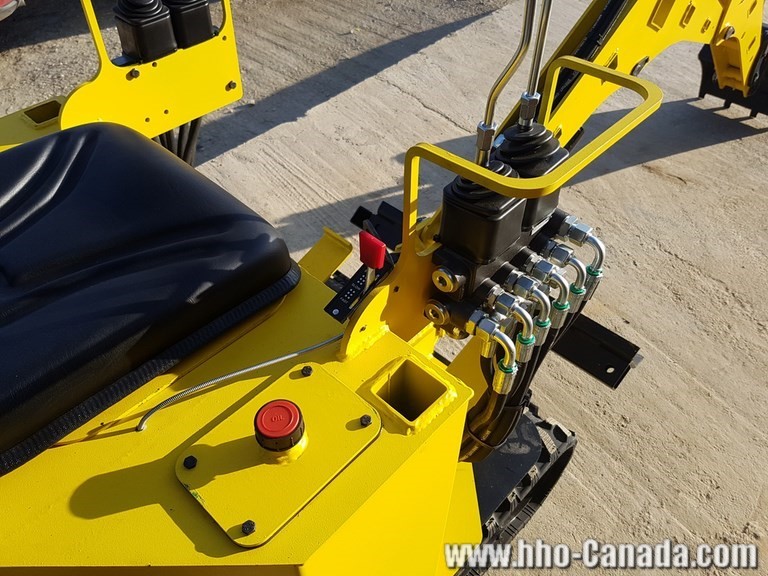

Hydraulic system

Hydraulic Pump: Dual Gear Pump 3.2 + 3.2 cc
Operating pressure: 150 bars
Flow rate: 5 + 5 l/min
Traction motor: Orbital
Hydraulic tank capacity: 25 l
Tracks of origin: 180x72x43


Downloads

Installation instructions available only in french for the moment,

thank you for downloading them on the french page of the website

Accessoires disponibles (en option)

*doigt de manutention disponible sur le bras d'origine et bras télescopique
